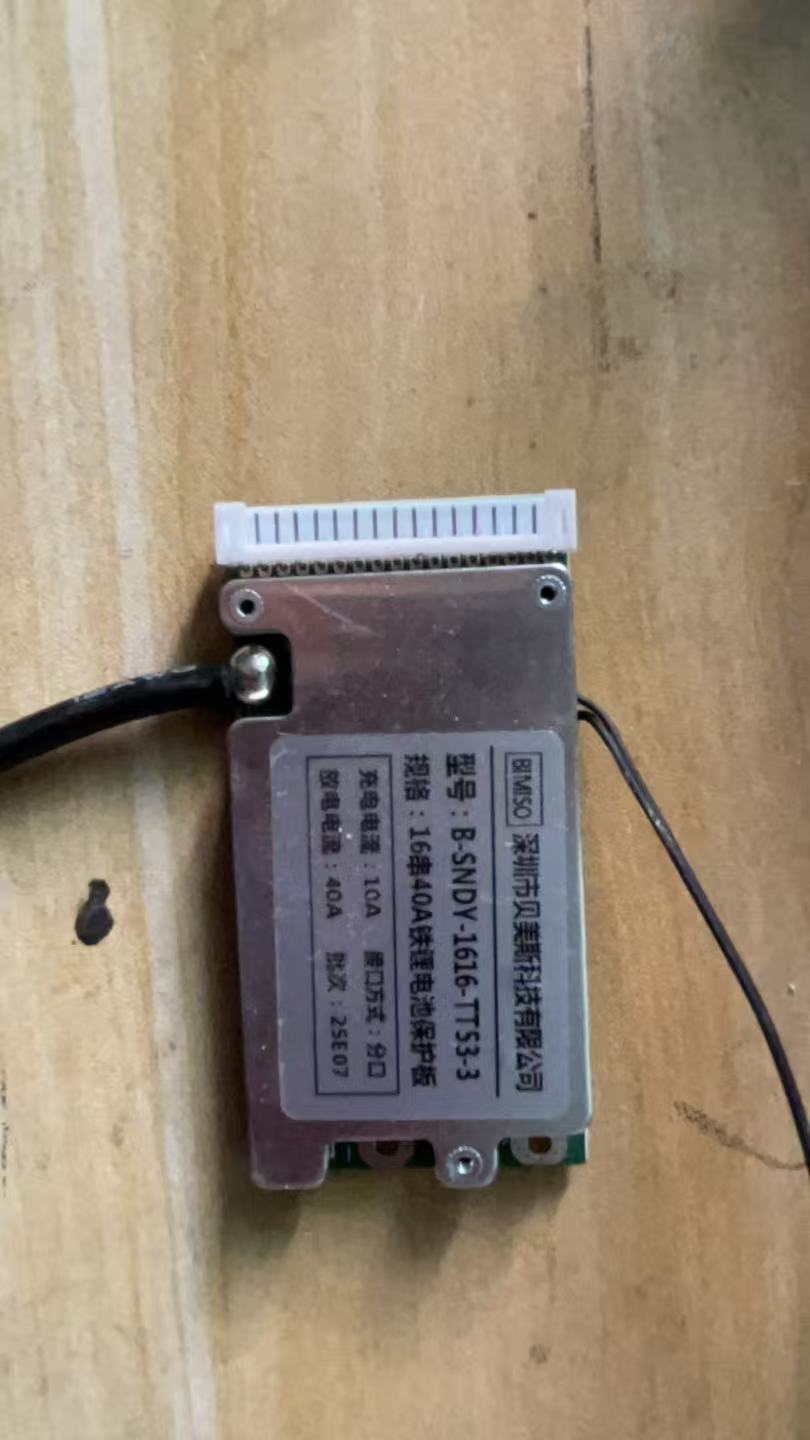

16S 1P Cells Lifepo4 Lithium Battery Pack Protection PCB BMS Board
Regular price
$50.00 USD
Regular price
Sale price
$50.00 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Parameters :
- Protection Circuit Module Specifications For li-lon Battery Pack, Different with normal PCB, it provides equilibrium function after battery pack is fully charged, e.g. PCM will detect each cell's voltage and trim higher voltage until other cell's voltage reach same,therefore allow lithium cell has longer service life. Also the PCM will provide the following protections:
- Balance each cell at Max. 3.65/cell ( required voltage tolerance within 0.3V for each cell)
- Overcharge protection voltage for single cell: 3.65V ± 0.03V
- Overdischarge protection voltage for single cell: 2.5V± 0.1V
- Continus working current: 50A
- Overcurrent detection protection: 50A
- Supply current: Max 30uA
- Short circuit protection
- Protection circuitry resistance: <=50mohms
- Charging current: 10A
Caution:
- Please do not plug in wrong polarity, otherwise the module will be completely destroyed.
- The resistance potential ratio of energy display module in different packs are different,only use the voltage that the label nominated.
- Please make sure your selection is correct before you buy.
Warranty
Warranty
1). 30 days money back guarantee on all orders if you're unsatisfied for any reason with one of our batteries
2). 1 year warranty on all orders
3). Lifetime technical support
Shipping & Returns
Shipping & Returns
USA : 3-7 Business Days
Canada : 7 - 10 Business Days
UK : 2-7 Business Days
Eurpoe : 2-7 Business Days
3 Months Free Return
Laser Wedling
Our battery production process is 80% automated.
Battery sorting, screening, assembly, and welding are all done automatically by machines
More efficient for production
More Reliable for Quality
Our goal is produce produce reliable and less cost lithium battery for customer
